Shakti Cast Private Limited | Structural Bridge Bearings & Mining Equipment

Mining Expertise

Underground mining equipment & machinery engineered for demanding applications.

Quality Focused

Manufacturing with a strong emphasis on strict quality control and metallurgical testing.

DGMS Approved

Major underground mining products are D.G.M.S. approved for safety and performance.

Experience

More than four decades of proven manufacturing experience and engineering excellence.

Mining Equipment

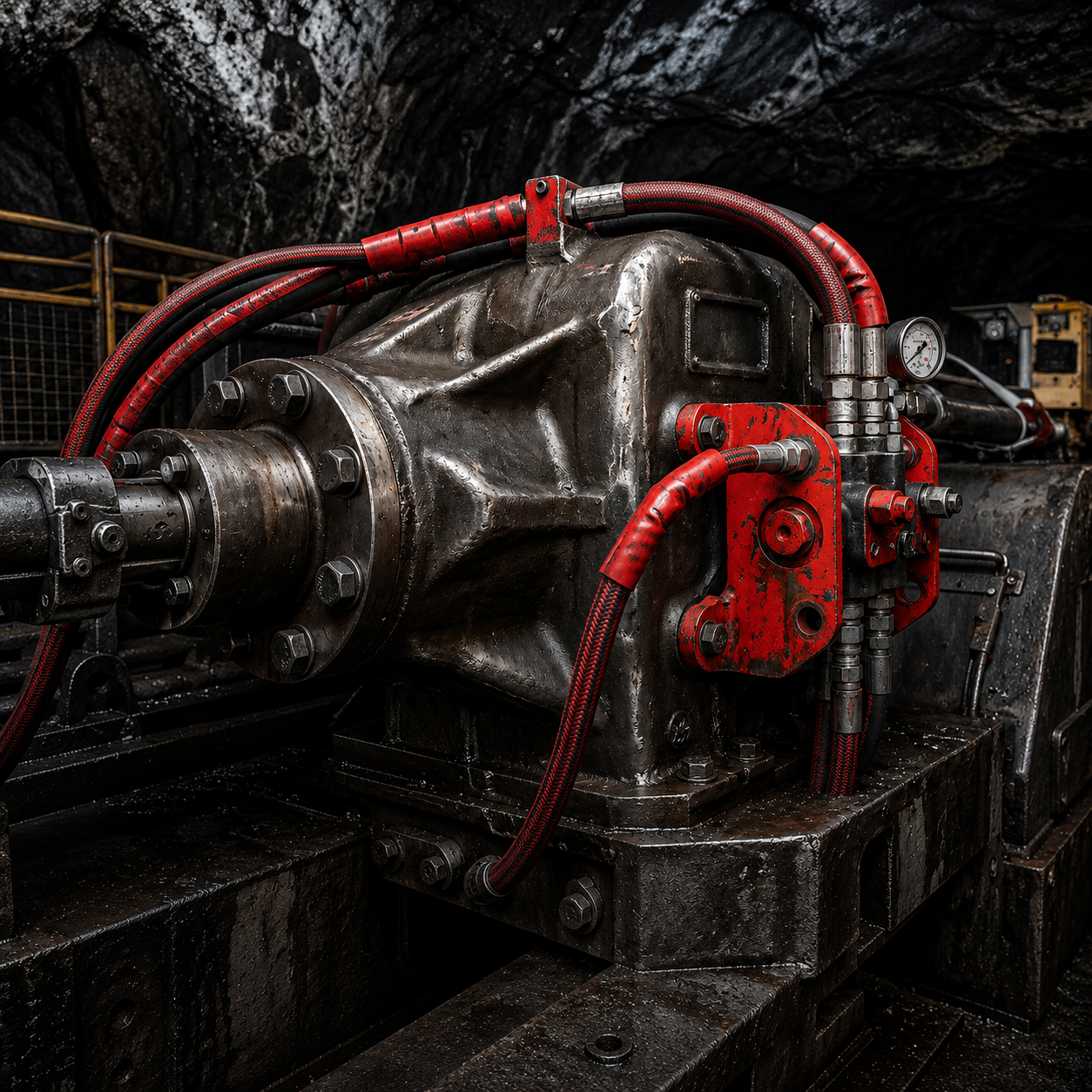

Heavy underground gear and cage suspension equipment close-up

Catalogue Specifications

Heavy Underground Gear & Cage Suspension

Engineered to MORM & DGMS safety standards up to 45 tonnes capacity.

Cage Suspension Gear & Bridle Chains

D.G.M.S. Approved Single Point Type Cage Suspension Gear and Bridle Chain Type Cage Suspension Gear up to 45 tonnes capacity, consisting of safety hook, friction wedge, rope cappel, distribution plate, white metal, bridle chain, link plate, suspension plate, anchor plate, shackle etc.

Rope Attachments

Balance Rope / Tale Rope / Guide Rope Attachment complete with chassis, weight platform and holding rod.

Mine Cars

Mine Car complete with wheel and axle.

Conveyors

Light Duty Single Chain Conveyor / Double Chain Conveyor / Belt Conveyor.

Mining Haulages

All Types and Capacity of Haulages with FLP and Non-FLP Electricals (Tugger, Direct and Endless Haulage).

Mine Winders & Drums

Winder complete with Drum Check, Brake path, Shaft, Gear, Pinion and Bearing Block with Gun Metal Bush, Tie Rod etc.

Head Gear Pulley & Sheave Wheels

Head Gear Pulley / Sheave Wheel as per IS:9239:1979, as per customer's specification with shaft, G.M. Bush and Block up to 5 mtrs. Dia.

Cage Arresters & Dog Catchers

Cage Arrester / Dog Catcher / Cage Catcher for Single Cage and Double Cage.

Sand Stowing Pipes & Fittings

C.I. Sand Stowing Pipe, Bend, Steel Bend, V. Pulley all Type etc.

Mine Ventilation Fans & Spares

Complete Mine Ventilation Fan with spares (PV-160, PV-200, PV-300, AF-65, AF-80, AF-90 etc.).

Slurry & Mining Pump Spares

Impeller, Casing, Suction Slide Cover (Drive Side, Non-Drive Side), Ring, Bush, Follower Plate, Pedestal etc. Materials as per IS:210 Grade‑25, Wear Resistance Casting, Ni‑Hard Casting.

Pit Bottom Buffers

Pit Bottom Buffer and Guide Rope Attachment (SCPL Make).

Boiler Spares & Components

Boiler Spare, Repairing, C.I. Fire Bar, Rest Ring etc.

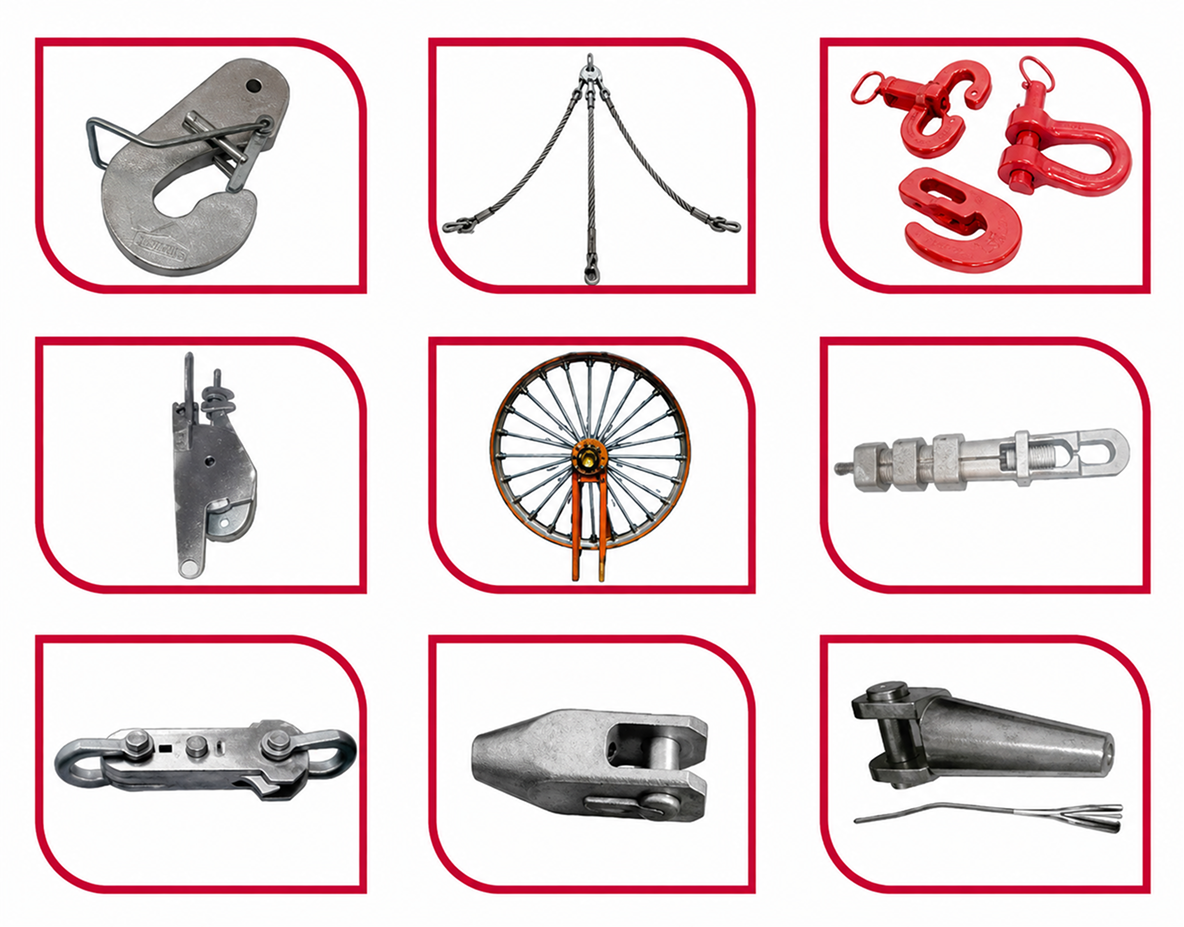

Mining Spares & Components

P.V.C. Blocks, Rollers & Pulleys

All Type of P.V.C. Block, Roller, Pulley etc.

Hob Cut Mining Gears & Pinions

Gear, Pinion spur, helical, double helical on hob cutting machined and balanced moulded teeth up to 13' dia.

Mining Machinery Replacement Spares

All types of spares for mining machineries.

Aerial Ropeway Spares

Ropeway spares: Bucket, hanger, tram car wheel and other spares.

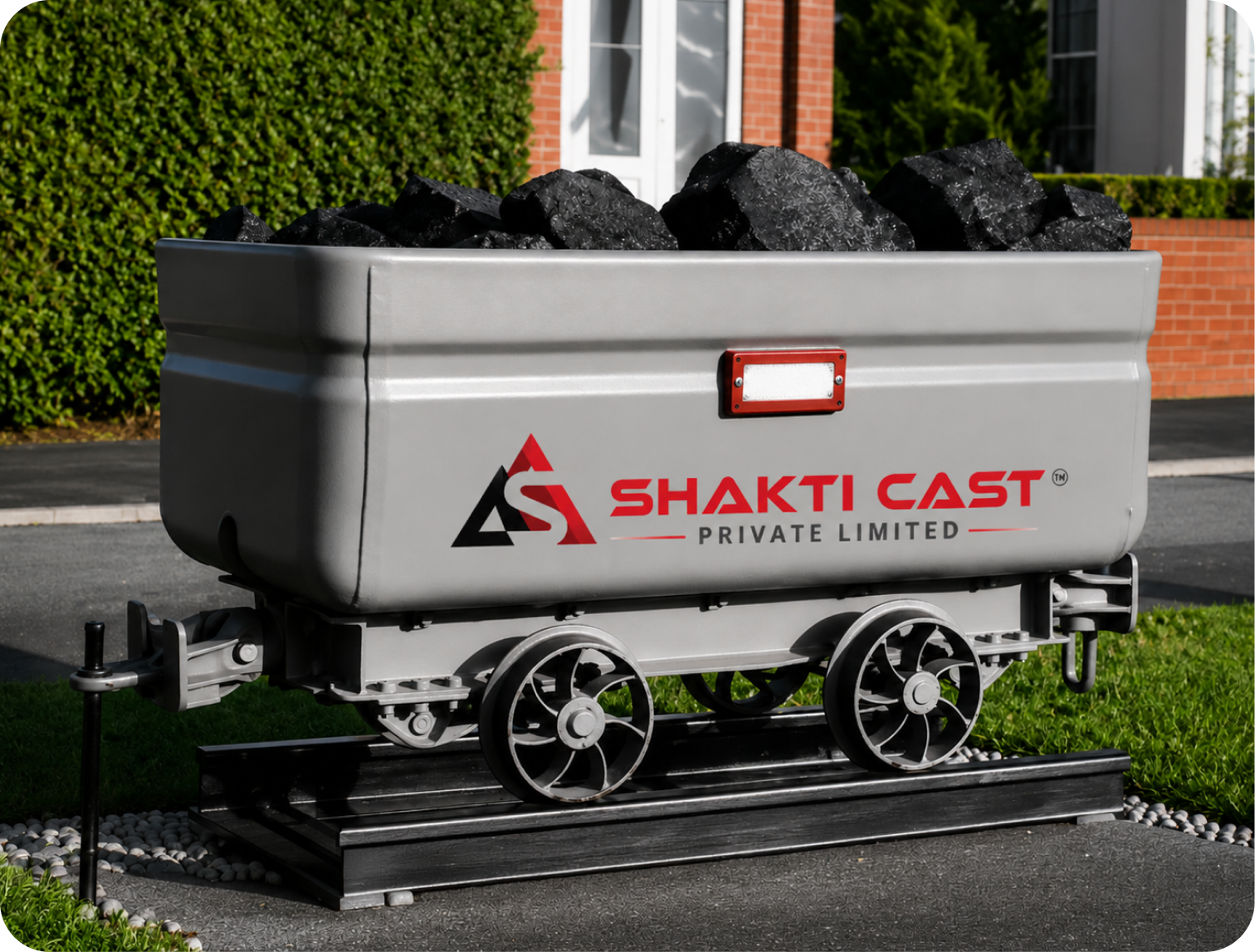

Coal Tubs

Coal Tub complete with Wheel and Axle.

Heavy C.I. Single Piece Castings

Any specified C.I. casting up to 5 tonnes in single piece.

Pulleys, Frames & Chassis Weights

C.I. Bevel Pulley, bevel pulley stand, friction roller, friction roller frame, coal tub block, return pulleys, segments, chassis weight & G.M. Bushes.

D.G.M.S. Tub Couplings

"C" type and "D" type tub coupling up to 5 tonnes pull as per D.G.M.S. latest circular made from 11 Mn2 or 20Mn2 or 1.5% Mn steel.

Precision Machining, Casting & Forging

All type of Machining, Casting, Fabrication and Forging.

— Factory Machinery Specifications

Mining Plant & Machinery

Complete list of heavy-duty machine tools, furnaces, gear hobbing units, and testing equipment installed at our 6-acre manufacturing complex:

Lathe Machine — (10', 6', 6.5', 8', 12', 16', 18')

Facing Lathe Machine — Upto 20' Dia

Horizontal Drill — 1¼" to Bore Upto 20' Length

Vertical Radius Drill Machine — 1½"

Multi Drill Machine — 1½" Capacity

Boring Drill Machine — H.D.

Pipe Facing Machine — H.D.

Planner Machine — 18' x 8' x 6'

Hobbing Machine for Gear Cutting — 6'

Slotter Machine — 2', 2½'

Shaper Machine — (2', 2½')

Hexa Cutter Machine — (1', 1½')

Profile Machine — 4'

Grinding Machine Horizontal — (6', 8')

JMW Lathe Choulk — 12', 12½', 18'

Radial Drill Machine — 1½" Capacity

Sagar All Gear — 24" Stroke Shaper

Slotting Machine — 14" Stroke

Cupola – Inner Dia. 56" Dia, Capacity 7 Tonne Per Hour

Facing Planner Upto — 25' Long

Proof Load Testing Machine — (80 Tonne Capacity) Duly Approved by D.G.M.S.

Vertical Drill Machine

Moulder Machine

Sand Screening Machine

Welding Transformer

Plate Bending Machine

Punch Machine

— Facility Architecture & Labs

Mining Infrastructure

Shakticast operates a fully integrated 6-Acre manufacturing workshop complex with specialized foundry, machining, forging, heat treatment, and testing laboratories:

Foundry Shop

30,000 Sq.Ft.

Foundry Shop with 56 inch dia Coke Fired Cupola with capacity to produce Molten Metal 7 tonne per hour, 10 tonne Overhead Crane, Heating Chamber, Sand Testing Equipment, Pattern Shop, Vibrating Screen, Mauler Machine and Covered Area – 30,000 Sq.ft.

Machine Shop

16,500 Sq.Ft.

Well equipped Machine Shop fitted with 10 tonne overhead crane, Lathe Machine, Radial & Vertical Drill Machine, Arc Welding Machine, Vertical Boring Machine, Facing Lathe Machine up to 6 meters dia, Proof Load Testing Machine 80 tonne capacity duly calibrated by C.I.M.F.R. and more. Covered Area – 16,500 Sq.ft.

Forging Shop

5,500 Sq.Ft.

"MASSEY" make Pneumatic Power Hammer, Heating Chamber and required forging equipment. Covered Area – 5,500 Sq.ft.

Heat Treatment Furnace

1,850 Sq.Ft.

Heat Treatment Furnace duly approved by D.G.M.S. for normalizing, stress relieving, and tempering of mining safety gear.

Laboratories

Full-fledged Chemical, Physical and Sand Testing Laboratory supervised by experienced technical personnel. Includes Ultrasonic Testing Machine, Stroll in Carbon Apparatus (1500°C), Muffle Furnace (1200°C), Brinell Hardness Tester (3000 Kg), Rope Cappel Band Testing Equipment (20 T Load Capacity), and Green/Dry Compressive Strength Testers.

Power & Design Section

Dedicated Drawing & Design Section with CAD software and drafting tools. Standard electrical power connection with 75 K.W. backed up by captive Kirloskar Diesel Generator set for uninterrupted production.

Covered Workshop Areas — Total 6 Acres

Foundry Shop30,000 Sq.ft.

Machine Shop16,500 Sq.ft.

Forging Shop5,500 Sq.ft.

Fabrication Shop8,000 Sq.ft.

Heat Treatment1,850 Sq.ft.

C.I. Pipe Shop4,500 Sq.ft.

BUILT FOR THEToughest Depths.

Engineered for Underground Mining
